小米训练营-大作业
[!NOTE]
背景
BMS系统是智能化管理及维护各个电池单元，防止电池出现过充电和过放电、延长电池的使用寿命、监控电池状态的系统。在BMS系统中存在大量电池各种信号的规则管理以及监控，良好的是处理信号，并且根据规则，生成相关预警信息，能够极大提升用户体验。为此需要大家完成一套支持规则配置、信号预警的系统，来解决电池各种突发情况和提升用户体验。
1. 技术方案

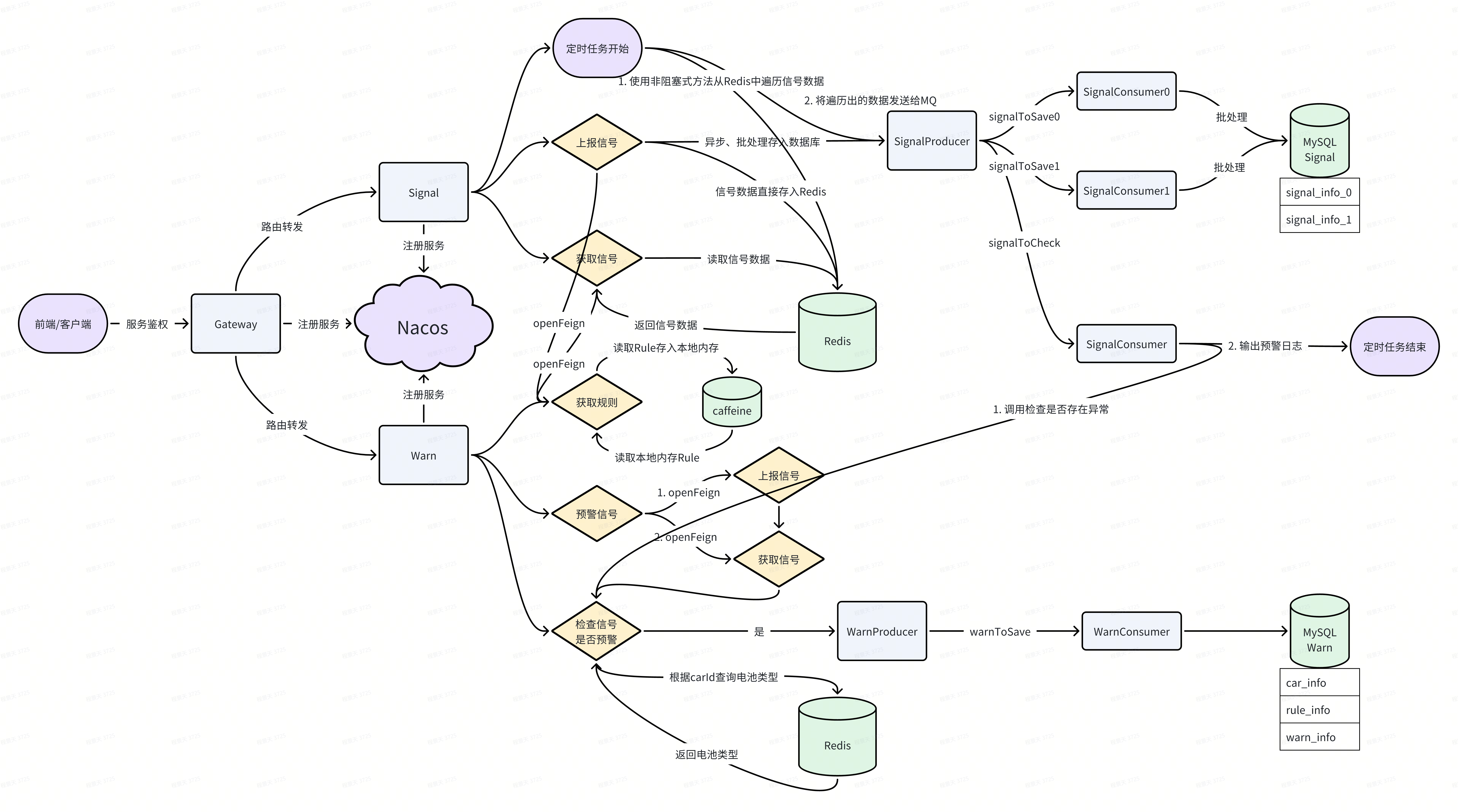

1.1 系统设计
技术栈：Java17 + SpringBoot2.6.13 + SpringCloudAlibaba3.1.9 + RocketMQ5.3.2 + Nacos2.5.1 + caffeine2.9.3 + Redis2.6.9 + MySQL5.7
.png)
1.2 数据库表设计
共由两个数据库：signal库和warn库
1.3 接口设计
核心功能共有四个接口：
signal微服务的uploadSignal上传信号接口：
signal微服务的getSignal获取信号接口：
- GET：
/api/upload/signal/{carId}
warn微服务的warnSignal预警信号接口：
warn微服务的warnSignal预警信号接口（供signal微服务调用）：
1.4 单元测试
使用Apifox对接口进行测试：
2. 代码
2.1 代码地址
Gitee：小米训练营-大作业：xiaomi-bms
2.2 核心代码
GetSignalServiceImpl类：
@Slf4j
@Service
@RequiredArgsConstructor
public class GetSignalServiceImpl implements GetSignalService {
private final RedisTemplate<String, Object> redisTemplate;
private final WarnClient warnClient;
@Override
public SignalVO getSignal(Long carId) {
List<SignalDTO> signals = new ArrayList<>();
String key = "SignalOfCarId:" + carId + ":";
try {
Set<Integer> warnIds = warnClient.getRules().stream().map(Rule::getWarnId).collect(Collectors.toSet());
for (Integer warnId : warnIds) {
Object obj = redisTemplate.opsForValue().get(key + warnId);
if (obj instanceof Map) {
signals.add(new JacksonObjectMapper().convertValue(obj, SignalDTO.class));
}
}
SignalVO signalVO = new SignalVO();
signalVO.setSignals(signals);
return signalVO;
} catch (Exception e) {
log.error("从Redis中获取对象失败");
return null;
}
}
}
|
UploadSignalServiceImpl类：
@Service
@RequiredArgsConstructor
public class UploadSignalServiceImpl implements UploadSignalService {
private final RedisTemplate<String, Object> redisTemplate;
private final SignalProducer signalProducer;
private final WarnClient warnClient;
@Override
public void uploadAndSave(SignalDTO signalDTO) {
signalDTO.setCreateTime(LocalDateTime.now());
String key = "SignalOfCarId:" + signalDTO.getCarId().toString() + ":";
if (signalDTO.getWarnId() == null) {
Set<Integer> warnIds = warnClient.getRules().stream().map(Rule::getWarnId).collect(Collectors.toSet());
for (Integer warnId : warnIds) {
signalDTO.setWarnId(warnId);
redisTemplate.opsForValue().set(key + warnId, signalDTO);
}
signalDTO.setWarnId(null);
} else {
redisTemplate.opsForValue().set(key + signalDTO.getWarnId(), signalDTO);
}
signalProducer.sendSaveMessage(signalDTO);
}
}
|
WarnSignalServiceImpl类：
@Service
@RequiredArgsConstructor
public class WarnSignalServiceImpl implements WarnSignalService {
private final SignalClient signalClient;
private final CarMapper carMapper;
private final RuleService ruleService;
private final StringRedisTemplate stringRedisTemplate;
private final WarnProducer warnProducer;
@Override
public WarnVO warnSignal(List<SignalDTO> SignalDTOList) {
List<WarnDTO> warns = new ArrayList<>();
for (SignalDTO signalDTO : SignalDTOList) {
signalClient.uploadSignal(signalDTO);
List<SignalDTO> signals = signalClient.getSignal(signalDTO.getCarId()).getData().getSignals();
for (SignalDTO signal : signals) {
WarnDTO warnDTO = checkSignal(signal);
if (warnDTO != null) {
warns.add(warnDTO);
}
}
}
return !warns.isEmpty() ? new WarnVO(warns) : null;
}
public WarnDTO checkSignal(SignalDTO signal) {
List<Rule> rules = ruleService.getAllRulesWithCache();
String key = "BatteryTypeOfCarId:" + signal.getCarId();
if (!stringRedisTemplate.hasKey(key)) {
stringRedisTemplate.opsForValue().set(key, carMapper.selectById(signal.getCarId()).getBatteryType().toString());
}
Integer batteryType = Integer.parseInt(Objects.requireNonNull(stringRedisTemplate.opsForValue().get(key)));
Rule rule = null;
for (Rule value : rules)
if (Objects.equals(value.getWarnId(), signal.getWarnId()) && Objects.equals(value.getBatteryType(), batteryType)) {
rule = value;
break;
}
if (rule != null) {
BigDecimal subtract;
if ("M".equalsIgnoreCase(rule.getDifference())) {
if (signal.getMx() == null || signal.getMi() == null) subtract = BigDecimal.valueOf(0);
else subtract = signal.getMx().subtract(signal.getMi());
} else if ("I".equalsIgnoreCase(rule.getDifference())) {
if (signal.getIx() == null || signal.getIi() == null) subtract = BigDecimal.valueOf(0);
else subtract = signal.getIx().subtract(signal.getIi());
} else return null;
String[] limit = rule.getWarnRule().split(",");
if (subtract.compareTo(new BigDecimal(limit[limit.length - 1])) < 0) return null;
for (int i = 0; i < limit.length; i++) {
if (subtract.compareTo(new BigDecimal(limit[i])) >= 0) {
WarnDTO warnDTO = new WarnDTO();
warnDTO.setCarId(signal.getCarId());
warnDTO.setBatteryType(batteryType);
warnDTO.setWarnName(rule.getWarnName());
warnDTO.setWarnLevel(i);
warnDTO.setCreateTime(signal.getCreateTime());
warnProducer.sendSaveMessage(warnDTO);
return warnDTO;
}
}
}
return null;
}
}
|
SignalConsumer0类：
@Service
@Slf4j
@RequiredArgsConstructor
@RocketMQMessageListener(
topic = "signalToSave0",
consumerGroup = "signal-consumer"
)
public class SignalConsumer0 implements RocketMQListener<SignalDTO> {
private final SignalMapper signalMapper;
private final List<Signal> signalList = new ArrayList<>();
@Override
public void onMessage(SignalDTO signalDTO) {
synchronized (signalList) {
try {
Signal signal = new Signal();
BeanUtils.copyProperties(signalDTO, signal);
signalList.add(signal);
if (signalList.size() >= 100) {
signalMapper.batchInsertSignals0(signalList);
signalList.clear();
}
} catch (Exception e) {
log.error("Failed to process message: {}", e.getMessage(), e);
}
}
}
}
|
WarnAllSignalTask类：
@Service
@Slf4j
@RequiredArgsConstructor
public class WarnAllSignalTask {
private final RedisTemplate<String, Object> redisTemplate;
private final SignalProducer signalProducer;
@Scheduled(cron = "0 0/10 * * * ?")
public void warnAllSignal() {
String keyPattern = "SignalOfCarId:*";
Set<String> keys = scanKeys(keyPattern);
if (!keys.isEmpty()) {
for (String key : keys) {
Object obj = redisTemplate.opsForValue().get(key);
if (obj instanceof Map) {
signalProducer.sendCheckMessage(new JacksonObjectMapper().convertValue(obj, SignalDTO.class));
}
}
} else {
log.error("SignalOfCarId为空");
}
}
private Set<String> scanKeys(String pattern) {
Set<String> keys = new HashSet<>();
redisTemplate.execute((RedisConnection connection) -> {
try (Cursor<byte[]> cursor = connection.scan(ScanOptions.scanOptions().match(pattern).build())) {
cursor.forEachRemaining(item -> keys.add(new String(item, StandardCharsets.UTF_8)));
}
return null;
});
return keys;
}
}
|
3. 运行截图
3.1 网关鉴权
请求需要进行鉴权，防止非法上报信号：
3.2 上报信号
结果返回正常：
信号批处理：
信号存放入Redis当中：
3.3 获取信号
获取carId下的所有规则的信号数据：
3.4 预警信息
结果放回需要预警的carId对应的预警信息：
同时更新Redis当中的数据：
并将结果存入warn数据库当中：
3.5 定时任务

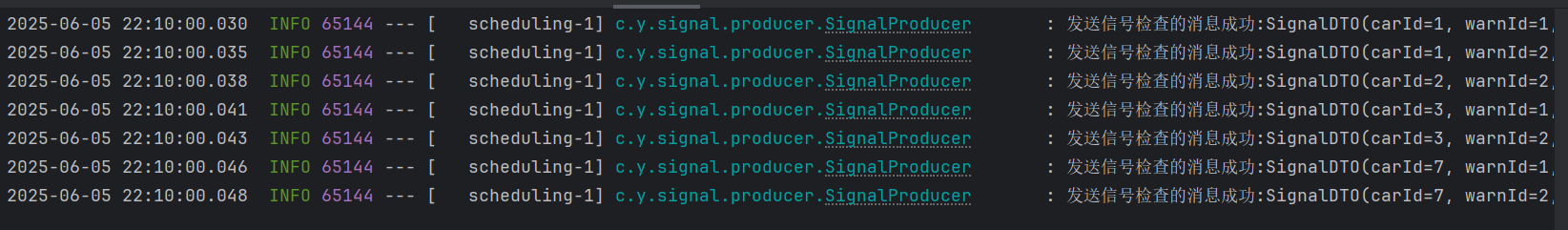

使用非阻塞方法扫描Redis，并发送消息给warn微服务：
warn微服务调用checkSignal方法，检查信号是否需要预警：
